Fundamental

Two signal systems

• PZB
• LZB

Light signal

Two types of signals

• main signal
• distance signal

Main signal

Green Clear to proceed at current line speed

Green over yellow Proceed at 40 km/h

Red Stop at this signal

White number on top of signal Indicate speed of proceeding

Blinking green Proceed at line speed, expect to slow down at next signal.

Distance signal

Indicate the main signal ahead. Lights are at diagonal angle. White light indicate this distance signal is closer to main signal than usual.

Double green

Next main signal is clear

Green over yellow Proceed at 40 km/h

Two yellow lights Expect to stop at next main signal

Shunt signal

Two horizontal red light Not clear to proceed

Two diagonal white light Clear to proceed at 40 km/h

PZB

There are three modes for PZB. The number for each mode indicate the speed to reduce to when passing cautionary signal (diagonal yellow).

• O mode for passenger train, illuminate 85.

PZB control

PZB acknowledge

Pgdown

PZB release

end

PZB overide

del

SOP

Passing cautionary signal

1. Press acknowledge when pass cautionary signal
2. 1000hz magnet light up
3. reduce speed to below 85 km/h
4. When 1000Hz magnet light off. If the path is clear ahead, press PZB release and accelerate. If not clear, decrease speed to 65 km/h.
5. When 500Hz magnet light up, decelerate to 45 km/h.
6. Stop before red signal
7. If get permission from the signaler, press and hold the overide button and move forward.
8. Keep speed below 40 km/h after passing this way untile travel 2km or pass a clear signal. After which press pzb release and accelerate.

note

• No need for acknowledge of 500Hz magnet
• Can’t go over 45 km/h after passing 500Hz even if signal is clear. The restriction last for 250m pass the signal.

LZB

Indicate by the U light.

When AFB active, the speed automatically adjust.

B lamp indicate whether auto braking is active. G lamp indicate it is faster than the braking curve allows.

When reaching end of LZB section

1. ende light up
2. press PZB acknowledge

Signs

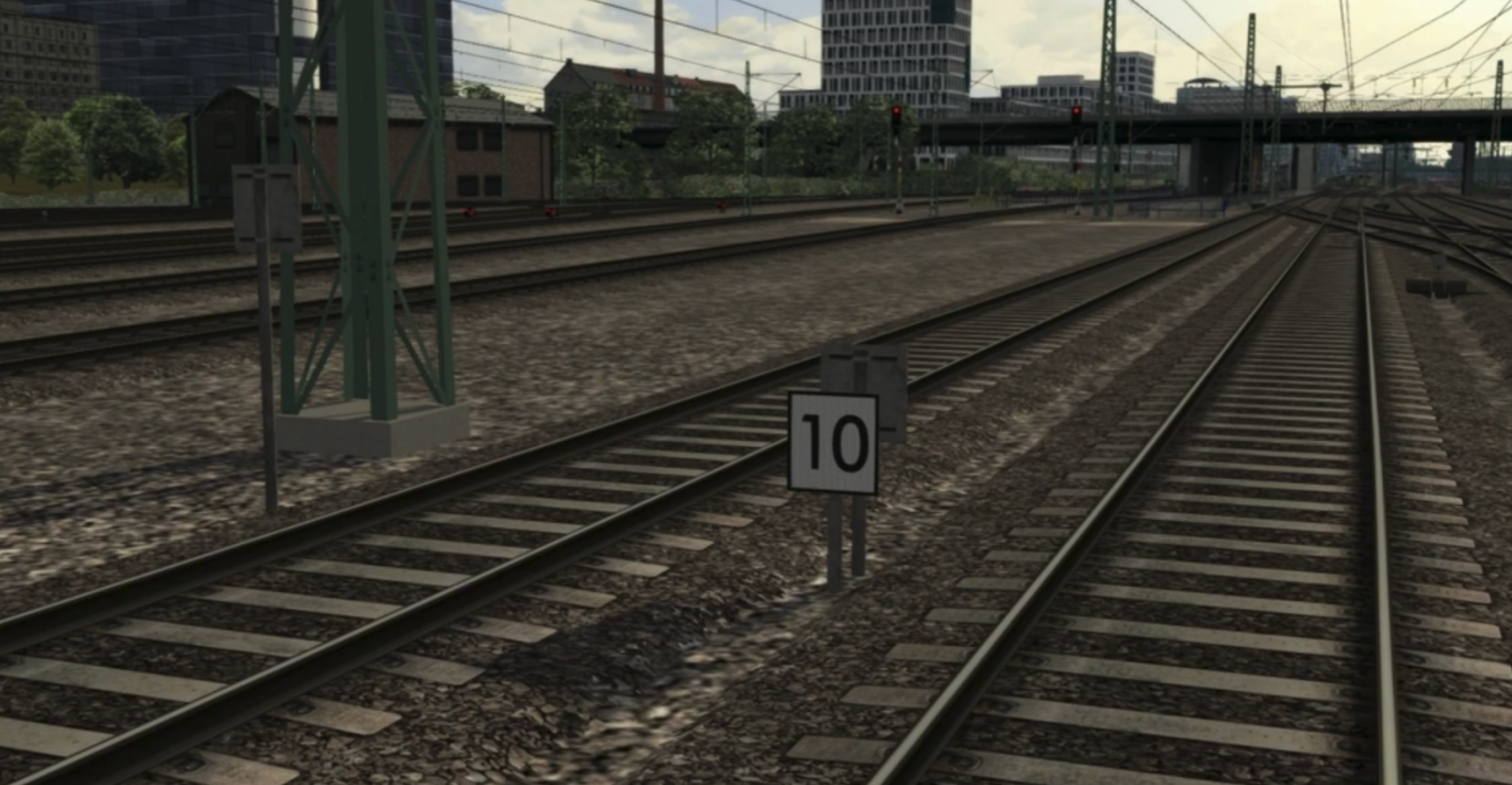

Speed Post

Show speed limit divide by ten. Arrow above the post indicates the track this speed limit applies to.

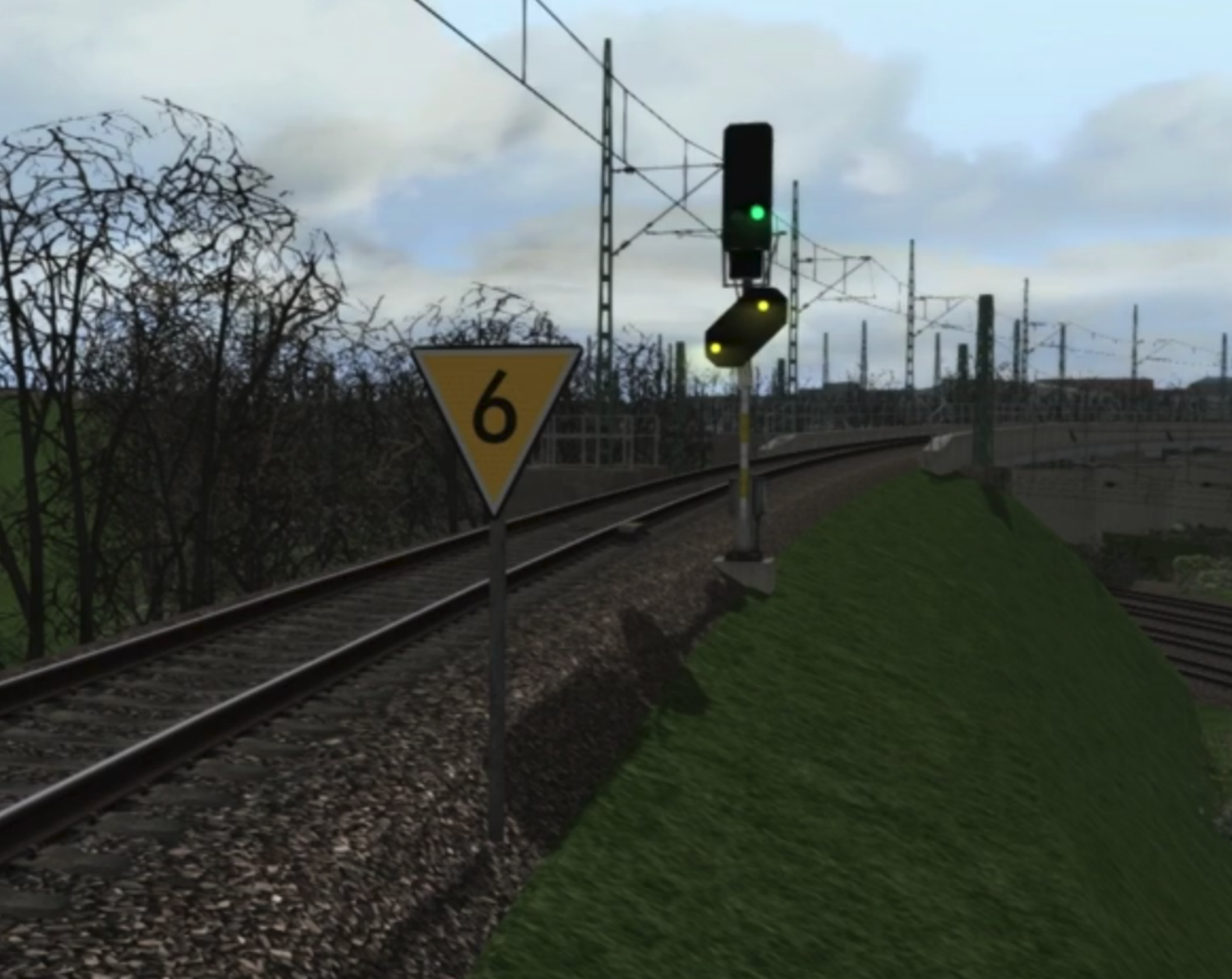

Speed Limit Warning Post

Indicate the upcoming speed change. May contain pzb magnet.

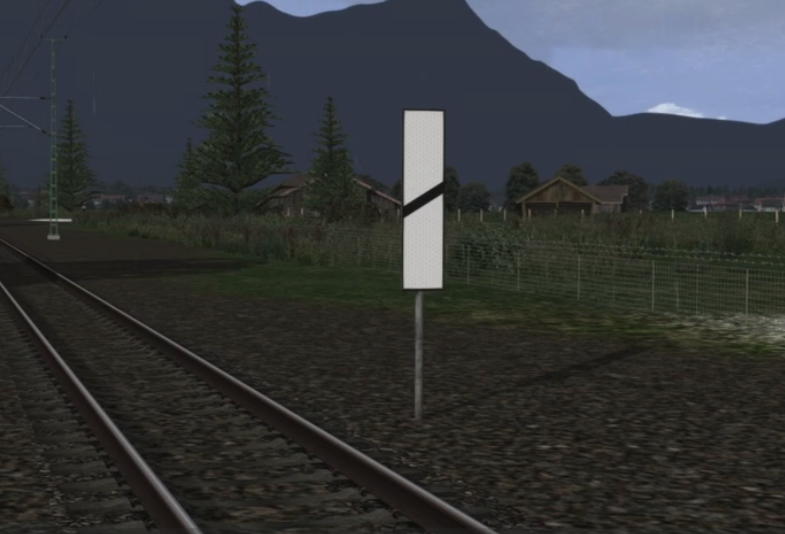

Distance Marker Post

Represent distance to an upcoming signal. 3 stripes — 250m; 2 stripes — 175m; 1 stripe — 100m.

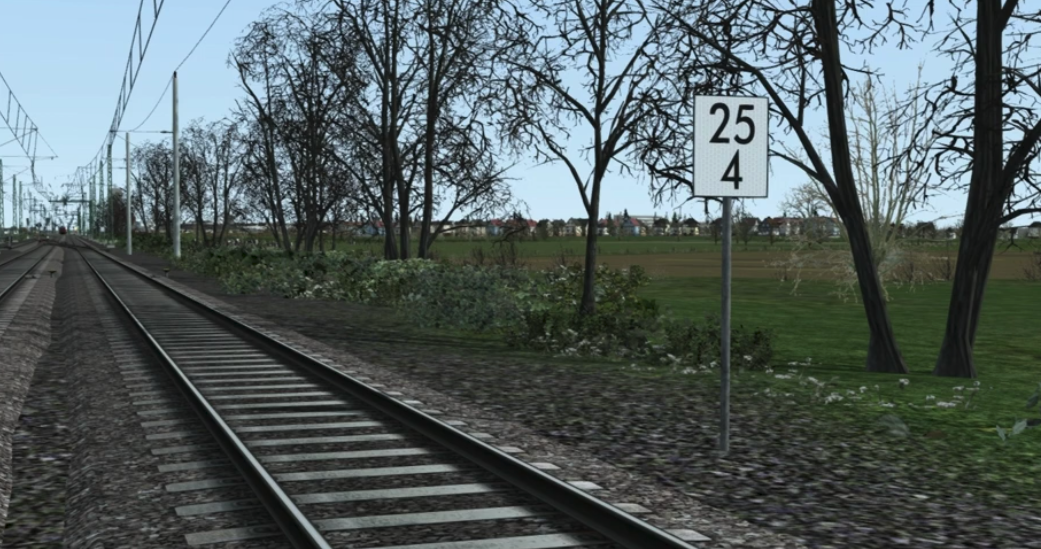

Hectometer Post

Exist every 200m. Indicate location from a location.

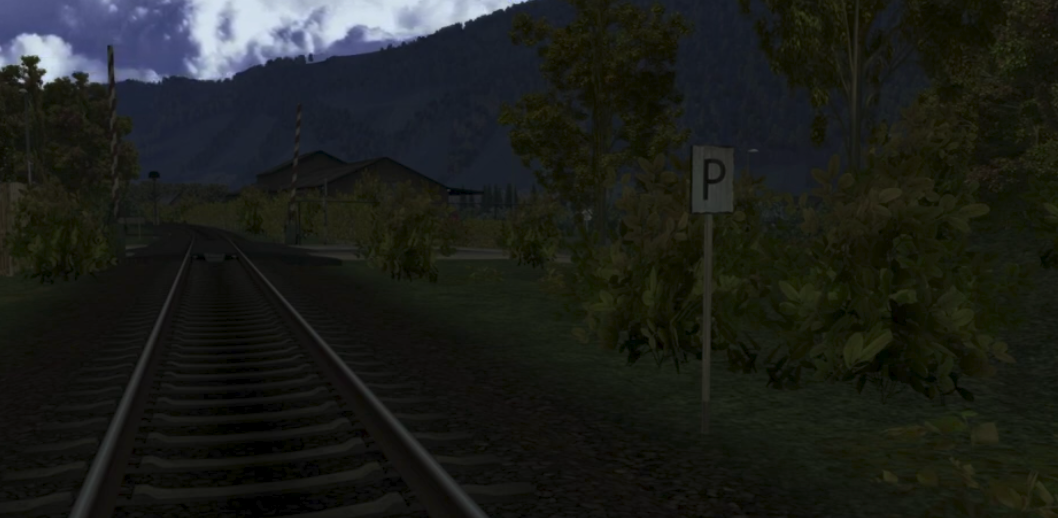

P Sign

Sound horn when passing P sign.

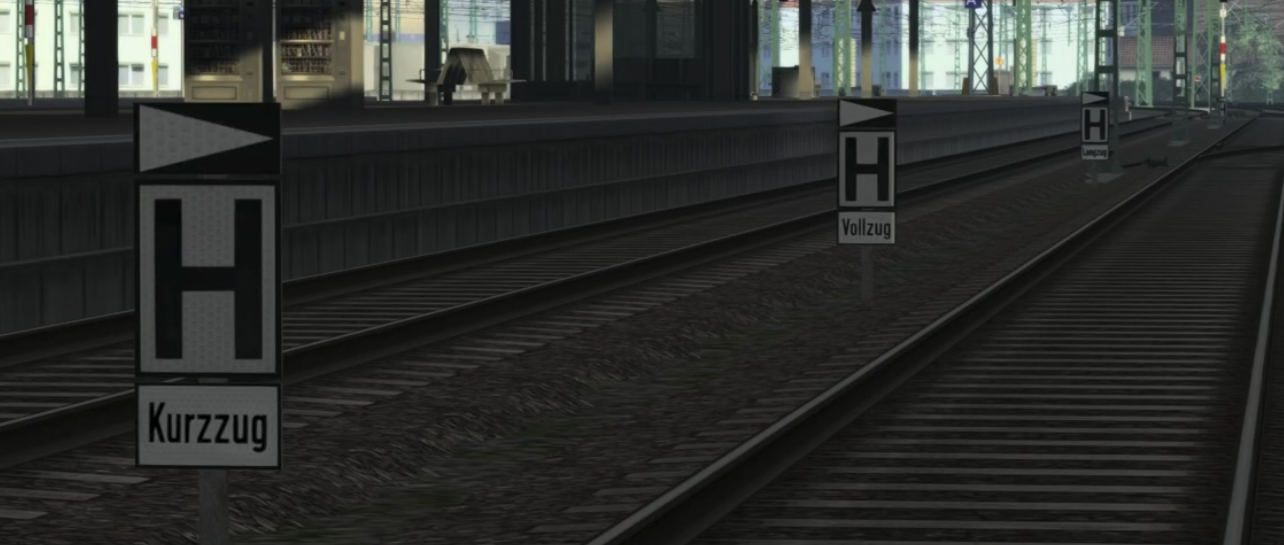

H Sign

Indicate stopping location.

Credit to PTGRail for the amazing video he made about this topic.
